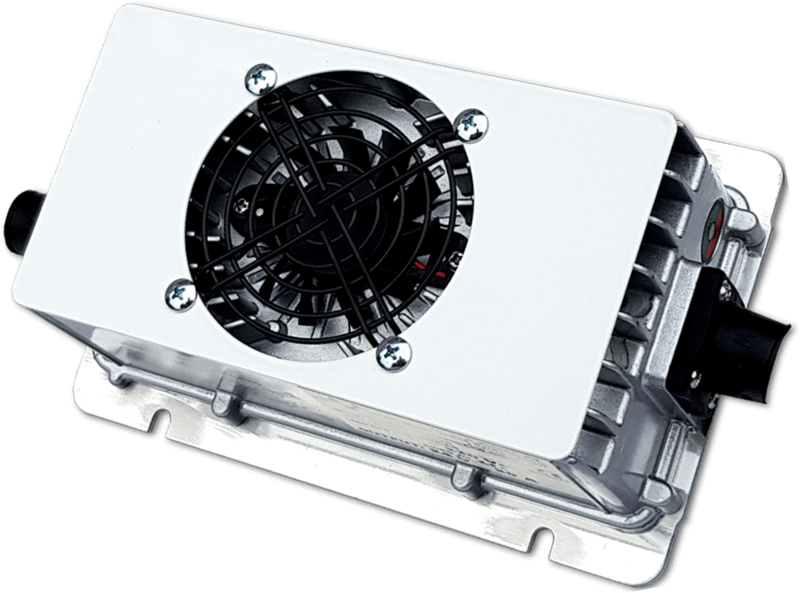

Abbildung inbatt N-Serie
inbatt N-Serie
High-frequency chargers for closed and sealed lead-acid batteries (Flooded, GEL, AGM, tubular plate) and adaptable for lithium batteries etc.

inbatt N-SerieIdeal for on-board use


In lifting platforms and forklifts (e.g. on trucks) as well as for small supply applications in camping and on boats, this charger series can stay on the battery and charge easily when needed.
Our recommendation for on-board charging of traction batteries in professional use.

Features

  • Optimised for on-board charging

    With remote display of charge status, some models also with remote control, with driveaway protection and protection against vibration, dust and water.

    Your advantage: Battery-powered devices and vehicles are always ready for use on the road.

Characteristics

  • Remote display of the state of charge with simple traffic light visualization.
  • Adjustment of the characteristic curve via infrared remote control or Bluetooth/smartphone (devices L-N1210, L-N2410 and L-N2430).
  • Waterproof and dustproof to IP67.
  • Vibration resistant, perfect for installation in vehicles and devices.
  • Loose drive protection** warns when the connection to the socket is established.
  • Suitable for the temperature range from -30 °C to +65 °C.
  • Temperature sensor inside and outside.
  • Characteristics for wet battery (grid and armor plate), GEL, AGM and on request customer side characteristics e.g. for lithium batteries.
  • Short circuit proof, overcharge proof.
  • High frequency technology (HF) with efficiency over 94 %."
  • Suitable for deeply discharged batteries.
  • Soft start.

Details

Item nr. Volt Ampere Length mm Width mm Height mm
L-N1210121018712362more
inbatt N-Serie L-N1210

L-N1210

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:10 A
Size:187 x 123 x 62 mm
Weight:1,8 kg
Where can I
buy this?
L-N1210-OB121018712362more
inbatt N-Serie L-N1210-OB

L-N1210-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:10 A
Size:187 x 123 x 62 mm
Weight:1,4 kg
Where can I
buy this?
L-N1215121518710572more
inbatt N-Serie L-N1215

L-N1215

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N1215-OB121518710572more
inbatt N-Serie L-N1215-OB

L-N1215-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N1220122018710572more
inbatt N-Serie L-N1220

L-N1220

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:20 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N1220-OB122018710572more
inbatt N-Serie L-N1220-OB

L-N1220-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:20 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N1225122528012877more
inbatt N-Serie L-N1225

L-N1225

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:25 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N1225-OB122521012877more
inbatt N-Serie L-N1225-OB

L-N1225-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:12 V
DC current:25 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N2410241018712362more
inbatt N-Serie L-N2410

L-N2410

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:24 V
DC current:10 A
Size:187 x 123 x 62 mm
Weight:1,8 kg
Where can I
buy this?
L-N2410-OB241018712362more
inbatt N-Serie L-N2410-OB

L-N2410-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:24 V
DC current:10 A
Size:187 x 123 x 62 mm
Weight:1,8 kg
Where can I
buy this?
L-N2415241518710572more
inbatt N-Serie L-N2415

L-N2415

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:24 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N2415-OB241518710572more
inbatt N-Serie L-N2415-OB

L-N2415-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:24 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N2420242018710572more
inbatt N-Serie L-N2420

L-N2420

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:24 V
DC current:20 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N2420-OB242018710572more
inbatt N-Serie L-N2420-OB

L-N2420-OB

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:24 V
DC current:20 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N2425242528012877more
inbatt N-Serie L-N2425

L-N2425

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:24 V
DC current:25 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N2425-OB242528012879more
inbatt N-Serie L-N2425-OB

L-N2425-OB

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:24 V
DC current:25 A
Size:280 x 128 x 79 mm
Weight:2,2 kg
Where can I
buy this?
L-N2430243028014279more
inbatt N-Serie L-N2430

L-N2430

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:24 V
DC current:30 A
Size:280 x 142 x 79 mm
Weight:2,8 kg
Where can I
buy this?
L-N2430-OB243022012577more
inbatt N-Serie L-N2430-OB

L-N2430-OB

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:24 V
DC current:30 A
Size:220 x 125 x 77 mm
Weight:2,8 kg
Where can I
buy this?
L-N24352435285167152more
inbatt N-Serie L-N2435

L-N2435

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:24 V
DC current:35 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N2435-OB2435285167152more
inbatt N-Serie L-N2435-OB

L-N2435-OB

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:24 V
DC current:35 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N24402440285167152more
inbatt N-Serie L-N2440

L-N2440

Power
Connection voltage:230 V
Connection current:5 A
DC voltage:24 V
DC current:40 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N2440-OB2440285167152more
inbatt N-Serie L-N2440-OB

L-N2440-OB

Power
Connection voltage:230 V
Connection current:5 A
DC voltage:24 V
DC current:40 A
Size:285 x 167 x 152 mm
Weight:3,7 kg
Where can I
buy this?
L-N24502450285167152more
inbatt N-Serie L-N2450

L-N2450

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:24 V
DC current:50 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N2450-OB2450285167152more
inbatt N-Serie L-N2450-OB

L-N2450-OB

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:24 V
DC current:50 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N3610361028012877more
inbatt N-Serie L-N3610

L-N3610

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:36 V
DC current:10 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3610-OB361021012877more
inbatt N-Serie L-N3610-OB

L-N3610-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:36 V
DC current:10 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3615361528012877more
inbatt N-Serie L-N3615

L-N3615

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:36 V
DC current:15 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3615-OB361521012877more
inbatt N-Serie L-N3615-OB

L-N3615-OB

Power
Connection voltage:230 V
Connection current:2 A
DC voltage:36 V
DC current:15 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3620362028012877more
inbatt N-Serie L-N3620

L-N3620

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:36 V
DC current:20 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3620-OB362021012877more
inbatt N-Serie L-N3620-OB

L-N3620-OB

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:36 V
DC current:20 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3625362528012877more
inbatt N-Serie L-N3625

L-N3625

Power
Connection voltage:230 V
Connection current:5 A
DC voltage:36 V
DC current:25 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3625-OB362521012877more
inbatt N-Serie L-N3625-OB

L-N3625-OB

Power
Connection voltage:230 V
Connection current:5 A
DC voltage:36 V
DC current:25 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N3630363022012577more
inbatt N-Serie L-N3630

L-N3630

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:36 V
DC current:30 A
Size:220 x 125 x 77 mm
Weight:2,8 kg
Where can I
buy this?
L-N3630-OB363022012577more
inbatt N-Serie L-N3630-OB

L-N3630-OB

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:36 V
DC current:30 A
Size:220 x 125 x 77 mm
Weight:2,8 kg
Where can I
buy this?
L-N36503650315200160more
inbatt N-Serie L-N3650

L-N3650

Power
Connection voltage:230 V
Connection current:9 A
DC voltage:36 V
DC current:50 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N3650-OB3650315200160more
inbatt N-Serie L-N3650-OB

L-N3650-OB

Power
Connection voltage:230 V
Connection current:9 A
DC voltage:36 V
DC current:50 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N4810481018710572more
inbatt N-Serie L-N4810

L-N4810

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:48 V
DC current:10 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N4810-OB481018710572more
inbatt N-Serie L-N4810-OB

L-N4810-OB

Power
Connection voltage:230 V
Connection current:3 A
DC voltage:48 V
DC current:10 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N4815481518710572more
inbatt N-Serie L-N4815

L-N4815

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:48 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N4815-OB481518710572more
inbatt N-Serie L-N4815-OB

L-N4815-OB

Power
Connection voltage:230 V
Connection current:4 A
DC voltage:48 V
DC current:15 A
Size:187 x 105 x 72 mm
Weight:2,3 kg
Where can I
buy this?
L-N4820482028012877more
inbatt N-Serie L-N4820

L-N4820

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:48 V
DC current:20 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N4820-OB482021012877more
inbatt N-Serie L-N4820-OB

L-N4820-OB

Power
Connection voltage:230 V
Connection current:6 A
DC voltage:48 V
DC current:20 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N4825482528012877more
inbatt N-Serie L-N4825

L-N4825

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:48 V
DC current:25 A
Size:280 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N4825-OB482521012877more
inbatt N-Serie L-N4825-OB

L-N4825-OB

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:48 V
DC current:25 A
Size:210 x 128 x 77 mm
Weight:3 kg
Where can I
buy this?
L-N48304830285167152more
inbatt N-Serie L-N4830

L-N4830

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:48 V
DC current:30 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N4830-OB4830285167152more
inbatt N-Serie L-N4830-OB

L-N4830-OB

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:48 V
DC current:30 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N48354835285167152more
inbatt N-Serie L-N4835

L-N4835

Power
Connection voltage:230 V
Connection current:10 A
DC voltage:48 V
DC current:35 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N4835-OB4835285167152more
inbatt N-Serie L-N4835-OB

L-N4835-OB

Power
Connection voltage:230 V
Connection current:10 A
DC voltage:48 V
DC current:35 A
Size:285 x 167 x 152 mm
Weight:4,8 kg
Where can I
buy this?
L-N48404840315200160more
inbatt N-Serie L-N4840

L-N4840

Power
Connection voltage:230 V
Connection current:10 A
DC voltage:48 V
DC current:40 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N4840-OB4840315200160more
inbatt N-Serie L-N4840-OB

L-N4840-OB

Power
Connection voltage:230 V
Connection current:10 A
DC voltage:48 V
DC current:40 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N48504850315200160more
inbatt N-Serie L-N4850

L-N4850

Power
Connection voltage:230 V
Connection current:12 A
DC voltage:48 V
DC current:50 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N4850-OB4850315200160more
inbatt N-Serie L-N4850-OB

L-N4850-OB

Power
Connection voltage:230 V
Connection current:12 A
DC voltage:48 V
DC current:50 A
Size:315 x 200 x 160 mm
Weight:7 kg
Where can I
buy this?
L-N7225722528016888more
inbatt N-Serie L-N7225

L-N7225

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:72 V
DC current:25 A
Size:280 x 168 x 88 mm
Weight:3,7 kg
Where can I
buy this?
L-N7225-OB722528016888more
inbatt N-Serie L-N7225-OB

L-N7225-OB

Power
Connection voltage:230 V
Connection current:8 A
DC voltage:72 V
DC current:25 A
Size:280 x 168 x 88 mm
Weight:3,7 kg
Where can I
buy this?
L-N72307230315200117more
inbatt N-Serie L-N7230

L-N7230

Power
Connection voltage:230 V
Connection current:11 A
DC voltage:72 V
DC current:30 A
Size:315 x 200 x 117 mm
Weight:6 kg
Where can I
buy this?
L-N7230-OB7230315200117more
inbatt N-Serie L-N7230-OB

L-N7230-OB

Power
Connection voltage:230 V
Connection current:11 A
DC voltage:72 V
DC current:30 A
Size:315 x 200 x 117 mm
Weight:6 kg
Where can I
buy this?
L-N7235723534818994more
inbatt N-Serie L-N7235

L-N7235

Power
Connection voltage:230 V
Connection current:13 A
DC voltage:72 V
DC current:35 A
Size:348 x 189 x 94 mm
Weight:5,5 kg
Where can I
buy this?
L-N7235-OB723534818994more
inbatt N-Serie L-N7235-OB

L-N7235-OB

Power
Connection voltage:230 V
Connection current:13 A
DC voltage:72 V
DC current:35 A
Size:348 x 189 x 94 mm
Weight:5,5 kg
Where can I
buy this?

Charger Knowledge

Charging the vehicle battery now and then
User chargers or consumer chargers are particularly easy to use and easy to maintain. They allow quick charging in between or when the battery is stored for a longer period of time before it is used again, e.g. a starter battery in a classic car that …
Chargers for traction batteries
As with supply batteries, traction batteries are used in cyclic applications, i.e. the batteries are used until they are quite empty and are charged during idle times. Here, the charger is part of an effective drive application. The efficiency of the …
Checking the battery step by step
There are many reasons for weakening or failing batteries. An important step in tracking them down is to measure the voltage with a battery tester. Here's how: 1. preparation Disconnect the battery from the vehicle, if possible remove it. Tips on how …
When is a multi-voltage charger worthwhile?
Electronic chargers can support different voltages. Depending on whether you only want to charge a car starter battery or also a scooter, motorhome supply battery or drive battery for small vehicles or industrial trucks, it may be worth reaching for a …
What does that even mean? Charging curve?
Current and voltage during charging can be measured and displayed as a curve over the course of the charging time. Depending on which processes, controls by switch-off (a) or switch-over points (0) are possible with a charger, one speaks of the provided charging characteristics.
Why is the charging voltage of the charger important?
In principle, when charging, the electrons within the battery move from one electrode to the other, in the opposite direction to when they draw current, i.e. discharge. If a discharged battery is provided with too high a voltage from the current or voltage …
Charging correctly step by step
Tip: For full performance: Charge before first installation! 1. preparation Check that your charger matches the battery. Does the charger support the correct charging voltage? Does the charging current provided match the battery? What charging curve …
Chargers in a workshop
Especially for workshops, there is another charger that supplies the vehicle with power during diagnoses and software updates on the vehicle electronics. During this phase, the vehicle management system requires a particularly large amount of power and …
Chargers in the showroom or car dealership
Showroom chargers are ideal for car dealers. They protect the battery while customers are test-seating the vehicle in the dealership. Consumers such as lights, cockpit displays and multimedia devices require power here during every demonstration, even …
AGM or GEL drive batteries
Drive batteries in AGM or GEL technology are sealed, absolutely maintenance-free, leak-proof batteries in a closed design with a fixed electrolyte (in fleece or gel). Both are suitable for medium to heavy cyclic use, for example in cleaning machines, …
