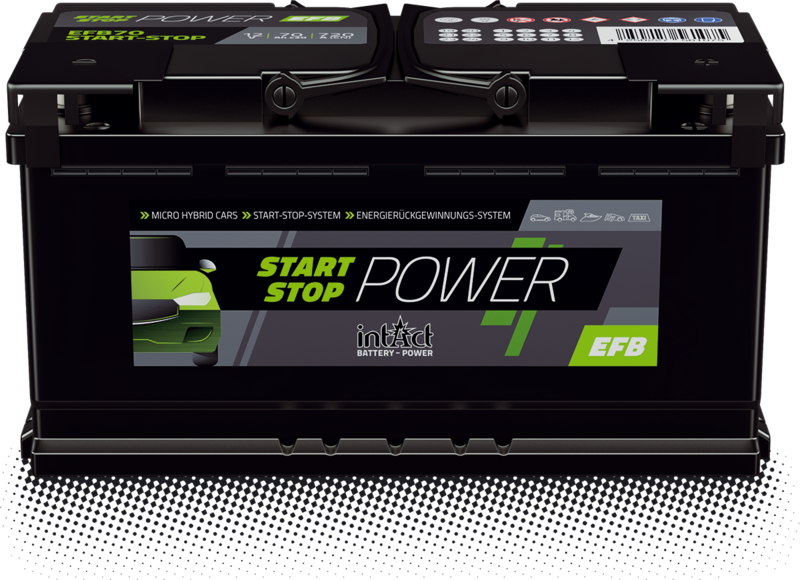

Abbildung intAct Start-Stop-Power EFB
Symbol: Eignung für car
Symbol: Eignung für Wohnmobile
Symbol: Eignung für Lkw
Symbol: Eignung für Bus
Symbol: Eignung für Marine
Symbol: Eignung für hybrid vehicles
Symbol: Eignung für taxi vehicles
Symbol Recycling efficiency 95 %
Symbol OEM quality
Symbol Maximum tipping angle 45º
Maintenance-free EFB (Enhanced Flooded Battery) | wet charged

intAct Start-Stop-Power EFBStart. Stop. Keep charging.

For small and medium-sized cars with start-stop systems and micro-hybrids with energy recovery. Enables an increased number of engine starts and supplies all consumers when the engine stops.

Our recommendation if an EFB was installed in the start-stop system and you do not want to upgrade to AGM. Also as a starter battery for trucks with high power requirements.

Features

  • Fast charging.

    The special carbon alloy ensures good charging behavior.
    Your advantage: This battery recharges quickly, even for short trips in city traffic.

  • Good provider.

    A significantly higher cycle stability than standard starter battery, this battery gets through the carbon grids.
    Your advantage: Can cope well with loads caused by auxiliary heating or life on board.

Characteristics

  • Excellent starting characteristics even at low charge level.
  • Higher cycle stability and cold start performance than standard starter battery in same box size. Therefore longer life expectancy.
  • Fantastic recharging behaviour in the partial charge range.
  • Maintenance-free battery with lead-calcium-tin grids.
  • Double lid with central degassing and backfire protection. Leak-proof.
  • Wet charged. Ready to use.
  • For start-stop vehicles and micro-hybrids with brake energy recovery (recuperation) and fuel-saving systems.
Recycling efficiency 95 %
Start-Stop
OEM quality
Maximum tipping angle 45º

All Types

intAct Start-Stop-Power EFB

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
EFB55SSi1255 AH (c20)480 A (EN)20717519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB55SS

EFB55SS

Japan-Code:{jpn}

EFB55SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:55 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:480 A (EN)
Size:207 x 175 x 190 mm
Schema Batteriekasten L01

Kasten: L01
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB60SSi1260 AH (c20)640 A (EN)24217519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB60SS

EFB60SS

Japan-Code:{jpn}

EFB60SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:60 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:640 A (EN)
Size:242 x 175 x 190 mm
Schema Batteriekasten L02

Kasten: L02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB65SSi1265 AH (c20)650 A (EN)27817517501more
product image Starter Battery intAct Start-Stop-Power EFB EFB65SS

EFB65SS

Japan-Code:{jpn}

EFB65SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:65 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:650 A (EN)
Size:278 x 175 x 175 mm
Schema Batteriekasten LB3

Kasten: LB3
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB70SSi1270 AH (c20)760 A (EN)27817519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB70SS

EFB70SS

Japan-Code:{jpn}

EFB70SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:70 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:760 A (EN)
Size:278 x 175 x 190 mm
Schema Batteriekasten L03

Kasten: L03
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB75SSi1275 AH (c20)730 A (EN)31517517501more
product image Starter Battery intAct Start-Stop-Power EFB EFB75SS

EFB75SS

Japan-Code:{jpn}

EFB75SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:75 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:730 A (EN)
Size:315 x 175 x 175 mm
Schema Batteriekasten LB4

Kasten: LB4
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB80SSi1280 AH (c20)800 A (EN)31517519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB80SS

EFB80SS

Japan-Code:{jpn}

EFB80SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:80 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:800 A (EN)
Size:315 x 175 x 190 mm
Schema Batteriekasten L04

Kasten: L04
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB100SSi12100 AH (c20)900 A (EN)35317519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB100SS

EFB100SS

Japan-Code:{jpn}

EFB100SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:100 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:900 A (EN)
Size:353 x 175 x 190 mm
Schema Batteriekasten L05

Kasten: L05
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB105SSi12105 AH (c20)950 A (EN)39417519001more
product image Starter Battery intAct Start-Stop-Power EFB EFB105SS

EFB105SS

Japan-Code:{jpn}

EFB105SS

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:105 AH (c20)
Base plate:B13
Schema Bodenleiste B13Schema Bodenleiste B13
Cold Cranking Ampere:950 A (EN)
Size:394 x 175 x 190 mm
Schema Batteriekasten L06

Kasten: L06
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

intAct Start-Stop-Power EFB Asia

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
EFB45SS-0-ASIAi1245 AH (c20)400 A (EN)23712722501more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB45SS-0-ASIA

EFB45SS-0-ASIA

Japan-Code:{jpn}

EFB45SS-0-ASIA

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:45 AH (c20)
Base plate:none
Cold Cranking Ampere:400 A (EN)
Size:237 x 127 x 225 mm
Schema Batteriekasten B24

Kasten: B24
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB45SS-1-ASIAi1245 AH (c20)400 A (EN)23712722511more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB45SS-1-ASIA

EFB45SS-1-ASIA

Japan-Code:{jpn}

EFB45SS-1-ASIA

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:45 AH (c20)
Base plate:none
Cold Cranking Ampere:400 A (EN)
Size:237 x 127 x 225 mm
Schema Batteriekasten B24

Kasten: B24
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB60SS-0-ASIAi1260 AH (c20)520 A (EN)23017222001more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB60SS-0-ASIA

EFB60SS-0-ASIA

Japan-Code:{jpn}

EFB60SS-0-ASIA

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:60 AH (c20)
Base plate:none
Cold Cranking Ampere:520 A (EN)
Size:230 x 172 x 220 mm
Schema Batteriekasten D23

Kasten: D23
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB60SS-1-ASIAi1260 AH (c20)520 A (EN)23017222011more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB60SS-1-ASIA

EFB60SS-1-ASIA

Japan-Code:{jpn}

EFB60SS-1-ASIA

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:60 AH (c20)
Base plate:none
Cold Cranking Ampere:520 A (EN)
Size:230 x 172 x 220 mm
Schema Batteriekasten D23

Kasten: D23
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB68SS-0-ASIAi1268 AH (c20)730 A (EN)27017322201more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB68SS-0-ASIA

EFB68SS-0-ASIA

Japan-Code:{jpn}

EFB68SS-0-ASIA

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:730 A (EN)
Size:270 x 173 x 222 mm
Schema Batteriekasten D26

Kasten: D26
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB68SS-1-ASIAi1268 AH (c20)730 A (EN)27017322211more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB68SS-1-ASIA

EFB68SS-1-ASIA

Japan-Code:{jpn}

EFB68SS-1-ASIA

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:68 AH (c20)
Base plate:B01
Schema Bodenleiste B01Schema Bodenleiste B01
Cold Cranking Ampere:730 A (EN)
Size:270 x 173 x 222 mm
Schema Batteriekasten D26

Kasten: D26
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB95SS-0-ASIAi1295 AH (c20)800 A (EN)30417322001more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB95SS-0-ASIA

EFB95SS-0-ASIA

Japan-Code:{jpn}

EFB95SS-0-ASIA

Position of Terminal:0
Schema Schaltung 0
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:95 AH (c20)
Base plate:none
Cold Cranking Ampere:800 A (EN)
Size:304 x 173 x 220 mm
Schema Batteriekasten D31

Kasten: D31
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB95SS-1-ASIAi1295 AH (c20)800 A (EN)30417322011more
product image Starter Battery intAct Start-Stop-Power EFB Asia EFB95SS-1-ASIA

EFB95SS-1-ASIA

Japan-Code:{jpn}

EFB95SS-1-ASIA

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:95 AH (c20)
Base plate:none
Cold Cranking Ampere:800 A (EN)
Size:304 x 173 x 220 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

intAct Start-Stop-Power EFB Truck

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
EFB140SSi12140 AH (c20)800 A (EN)51318922331more
product image Starter Battery intact Start-Stop-Power EFB Truck EFB140SS

EFB140SS

Japan-Code:{jpn}

EFB140SS

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:140 AH (c20)
Base plate:none
Cold Cranking Ampere:800 A (EN)
Size:513 x 189 x 223 mm
Schema Batteriekasten D04

Kasten: D04
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB180SSi12185 AH (c20)1100 A (EN)51322322331more
product image Starter Battery intact Start-Stop-Power EFB Truck EFB180SS

EFB180SS

Japan-Code:{jpn}

EFB180SS

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:185 AH (c20)
Base plate:none
Cold Cranking Ampere:1100 A (EN)
Size:513 x 223 x 223 mm
Schema Batteriekasten D05

Kasten: D05
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
EFB230SSi12235 AH (c20)1200 A (EN)51827624231more
product image Starter Battery intact Start-Stop-Power EFB Truck EFB230SS

EFB230SS

Japan-Code:{jpn}

EFB230SS

Position of Terminal:3
Schema Schaltung 3
Volt:12
Terminal:1
Schema Endpol 1Schema Endpol 1
Capacity:235 AH (c20)
Base plate:none
Cold Cranking Ampere:1200 A (EN)
Size:518 x 276 x 242 mm
Schema Batteriekasten D06

Kasten: D06
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Accessories
Charger

DEFA SmartCharge

Compact design for convenient charging of 12 volt batteries.


See product

Fronius Acctiva


Charge starter batteries professionally and supply consumers and on-board electronics.


See product
WHAT IS A WET BATTERY?
Dimensions before starting power
First of all, a battery must fit in your vehicle or machine. Check the dimensions of your old battery or the available space in the battery compartment of your vehicle. The placement of the terminals, i.e. where exactly the positive and negative terminals …
What does absolutely maintenance-free mean?
Absolutely maintenance-free batteries are valve-regulated lead-acid batteries or VRLA batteries (VRLA = Valve Regulated Lead-Acid) that are sealed at the factory. Here, significantly less gas is produced than in wet batteries. The gas produced remains …
What are start-stop batteries?
The EFB (Enhanced Flooded Battery) was developed for start-stop vehicles. This further development of the wet battery is significantly more cycle resistant, like the intAct Start-Stop-Power EFB. Because of the good current reserve, AGM batteries are also …
Filling a dry pre-charged battery
Dry pre-charged batteries must be filled with battery acid and charged before installation.
Removing the starter battery or motorcycle battery
If you want to remove a start-stop battery: inform the vehicle system before removal. First disconnect the negative cable (usually black), also called ground or earth, from the negative terminal of the battery. Then remove the positive cable (usually red) from the positive terminal of the battery.
Checking the battery step by step
There are many reasons for weakening or failing batteries. An important step in tracking them down is to measure the voltage with a battery tester. Here's how: 1. preparation Disconnect the battery from the vehicle, if possible remove it. Tips on how …
What is the point of vibration-proofing a starter battery?
Especially in trucks and other high-displacement commercial vehicles with diesel engines, there are strong vibrations that cause the battery to age prematurely. Our truck batteries in SHD versions are vibration resistant according to V3, like the intAct …
For plugs: Simply open them and look inside.
Low maintenance batteries have a distinct advantage: if something is wrong, you can open them and look inside. What you see will give you some clues. Warning: You can tell if the battery can be opened by the individual plugs on the top. Often these lead-acid …
Charging during long idle periods
If the vehicle is stationary for long periods and you make a lot of short journeys, it is advisable to charge the battery regularly with a charger, even if the battery has a low self-discharge rate or high cold-start performance. The exact intervals depend …
What do discoloured plugs mean?
A brown-reddish discoloration of the plugs indicates an overcharging of the battery and a fault in the charging system. Tip: Your workshop can check whether your charge controller is working properly. Tip: Check the function and characteristics of your …
The order of disconnection and connection
The negative terminal is connected to the body, hence the name grounding. If you accidentally touch the positive terminal and the body at the same time when the negative terminal is connected, e.g. with a metallic tool, a short circuit could occur that …
Check battery externally before charging
If the battery box is damaged or deformed, replace the battery. Clean dirty terminals with a wire brush. Remove oils, fluids or other deposits. For batteries with plugs, check fluid level and refill to MAX with distilled water if necessary.
What does maintenance-free mean?
In maintenance-free batteries, the electrolyte is in liquid form. They are usually closed at the factory, often with a double or labyrinth lid in which any gases produced condense and remain in the battery. In normal operation, maintenance-free ones do …

What is a starter battery?

A battery that is charged by the alternator and starts the vehicle. For this purpose, the starter motor requires a lot of current for a short time. In addition to the cold start capacity (CCA), which indicates how much current the battery can ideally supply, the properties of a battery influence how reliably it can provide this starting power. A battery with very good charging properties recharges more quickly, for example, which benefits vehicles in city traffic in particular. It also supplies the consumers in vehicles without an additional back-up battery or supply battery. The more electrical consumers are installed at the factory or retrofitted, the more capacity is required to supply them when the vehicle is idling or at an engine stop and still reliably restart the vehicle.

Commissioning

A battery that is not fully charged when installed will not reach its full capacity in the future and will have a significantly shortened service life.

Even factory-filled and charged batteries can lose charge during storage. We recommend that you also fully charge them before installation.

You can find out how to do this in our step-by-step guide to charging your battery.

Maintenance and Care

In maintenance-free batteries, the electrolyte is in liquid form. They are usually closed at the factory, often with a double or labyrinth lid in which any gases produced condense and remain in the battery. In normal operation, maintenance-free ones do not lose any liquid. They cannot be opened, refilling is not possible and not necessary.

For which applications is the intAct Start-Stop-Power EFB suitable?

Symbol carcar
car, passenger car, cars, automobiles, vans, panel van
Symbol WohnmobileWohnmobile
Wohnmobile, Caravan, Motorcaravan, Motorhome, Campingbus, Reisemobil, Alkoven, Campingfahrzeuge
Symbol LkwLkw
Lkw, Lastkraftwagen, Lastwagen, Lastauto, Laster, Lastzug, Truck,
Symbol BusBus
Bus, Omnibus, Autobus
Symbol MarineMarine
Boats, ships, yachts
Symbol hybrid vehicleshybrid vehicles
hybrid vehicles, hybrid cars, hybrid electric vehicles, hybrid electric vehicles
Symbol taxi vehiclestaxi vehicles
Start-Stop batteries for taxi vehicles with increased engine starts and long supply of the consumers when the engine is not running.
