Abbildung intAct Solar-Power AGM
Symbol: Eignung für wind-power plants
Symbol: Eignung für E-boats (electric boat)
Symbol: Eignung für Solar applications
Symbol Recycling efficiency 95 %
Symbol Maximum tipping angle 90º
Sealed AGM battery with grid plates | electrolyte fixed in fleece | filled and charged | absolutely maintenance-free

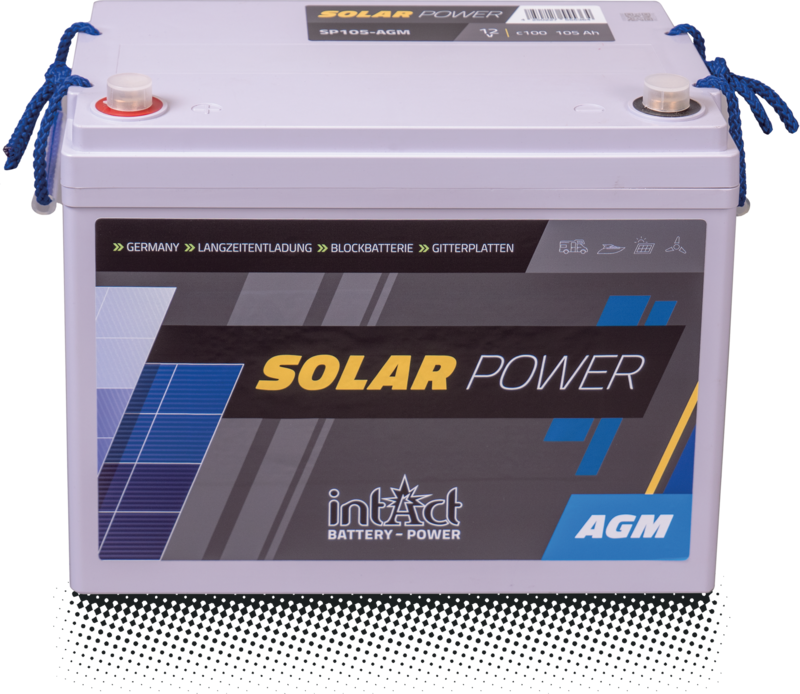

intAct Solar-Power AGMRobust solar battery


on AGM-basis for high currents and deep charge cycles.
Our recommendation if you want an enduring, absolutely maintenance-free battery for solar or wind applications.

Features

  • Performance-stable buffer that handles changing currents well.

    AGM technology ensures consistent power quality throughout the charge and discharge process, even with changing currents.
    Your benefit: Inexpensive storage battery for small solar applications such as lighting, cooling and small electrical appliances in garden huts, camping situations or weekly market stalls.

  • Very durable

    This battery has significantly thicker grid plates and reinforced fleece separators. Even under high loads, low temperatures and low charges, the performance remains stable.
    Your advantage: Significantly more durable than a common grid plate battery.

  • Absolutely maintenance-free and leak-proof

    This battery can also be operated safely lying on water.
    Your advantage: You do not need to worry about water level control and refilling.

Characteristics

  • Very high life expectancy. 700 cycles according to IEC 254-1 for heavy cyclic use.
  • Absolutely maintenance-free. VRLA battery with gas recombination and safety valves, where refilling is not possible and not necessary.
  • Constant power quality throughout the discharge process even at high currents.
  • Longer life than wet lead-acid battery.
  • Shorter charging time than wet lead-acid battery.
  • Low self-discharge. Loses less than 3% charge per month.
  • Vibration resistant AGM battery with robust grids and strong fleece separators.
  • Reinforced grid plates with higher performance active material for deep cycle applications.
  • Temperature and corrosion resistant case.
  • Can also be installed horizontally.
  • Leak-proof.
Recycling efficiency 95 %
Maximum tipping angle 90º

All types

intAct Solar-Power AGM

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal

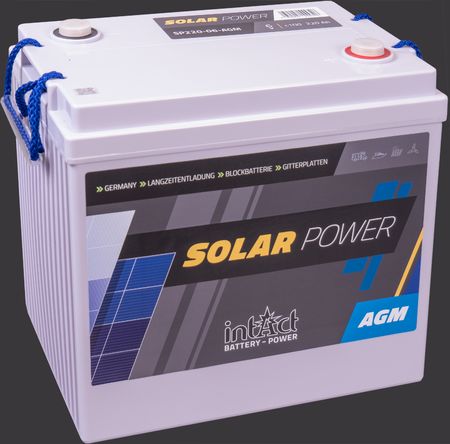

SP220-06-AGMi6185 AH (c5), 200 AH (c20), 230 AH (c100)2621812810F-M8more
product image Supply Battery intAct Solar-Power AGM SP220-06-AGM

SP220-06-AGM

Japan-Code:{jpn}

SP220-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:185 AH (c5), 200 AH (c20), 230 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

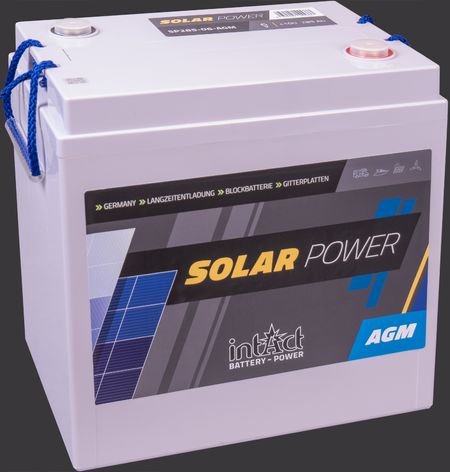

SP285-06-AGMi6220 AH (c5), 260 AH (c20), 278 AH (c100)2621812810F-M8more
product image Supply Battery intAct Solar-Power AGM SP285-06-AGM

SP285-06-AGM

Japan-Code:{jpn}

SP285-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:220 AH (c5), 260 AH (c20), 278 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

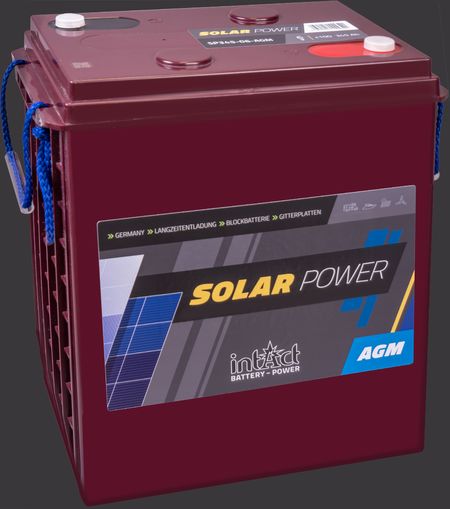

SP345-06-AGMi6300 AH (c5), 315 AH (c20), 357 AH (c100)3121803590F-M8more
product image Supply Battery intAct Solar-Power AGM SP345-06-AGM

SP345-06-AGM

Japan-Code:{jpn}

SP345-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:300 AH (c5), 315 AH (c20), 357 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:312 x 180 x 359 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

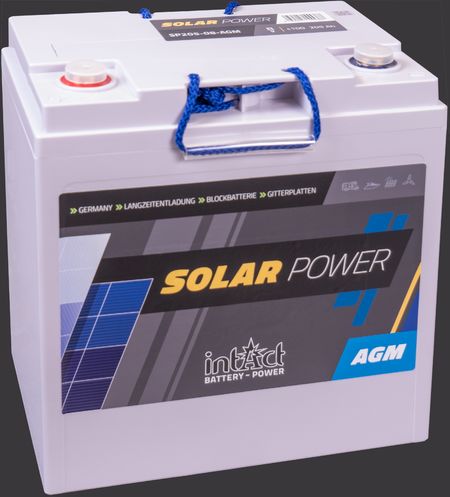

SP205-08-AGMi8170 AH (c5), 185 AH (c20), 199 AH (c100)2621812810F-M8more
product image Supply Battery intAct Solar-Power AGM SP205-08-AGM

SP205-08-AGM

Japan-Code:{jpn}

SP205-08-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:8
Terminal:F-M8
Schema Endpol F-M8
Capacity:170 AH (c5), 185 AH (c20), 199 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

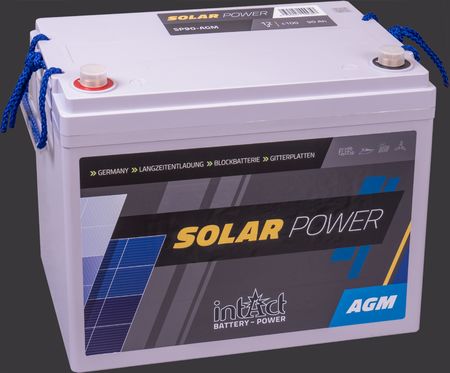

SP90-AGMi1270 AH (c5), 80 AH (c20), 99 AH (c100)2601712101F-M8more
product image Supply Battery intAct Solar-Power AGM SP90-AGM

SP90-AGM

Japan-Code:{jpn}

SP90-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:70 AH (c5), 80 AH (c20), 99 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:260 x 171 x 210 mm
Schema Batteriekasten T09

Kasten: T09
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

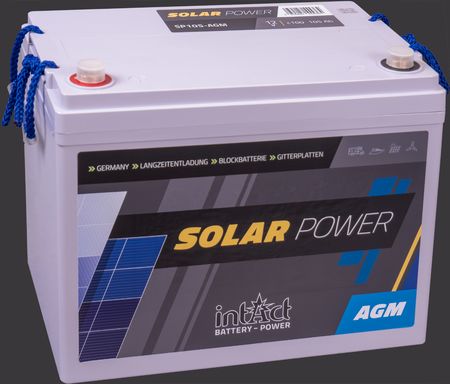

SP105-AGMi1285 AH (c5), 95 AH (c20), 107 AH (c100)2601712101F-M8more
product image Supply Battery intAct Solar-Power AGM SP105-AGM

SP105-AGM

Japan-Code:{jpn}

SP105-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:85 AH (c5), 95 AH (c20), 107 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:260 x 171 x 210 mm
Schema Batteriekasten T09

Kasten: T09
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

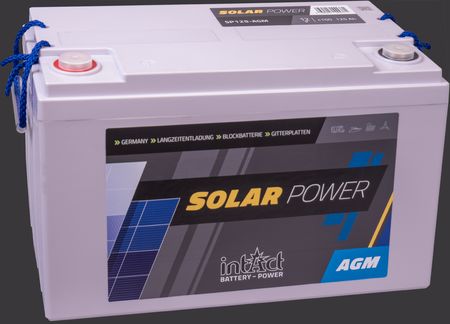

SP125-AGMi12110 AH (c5), 114 AH (c20), 136 AH (c100)3291712151F-M8more
product image Supply Battery intAct Solar-Power AGM SP125-AGM

SP125-AGM

Japan-Code:{jpn}

SP125-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:110 AH (c5), 114 AH (c20), 136 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:329 x 171 x 215 mm
Schema Batteriekasten T14

Kasten: T14
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Accessories
Charger

DEFA SmartCharge

Compact design for convenient charging of 12 volt batteries.


See product

DEFA workshop chargers


Powerful workshop charger.
Protects onboard electronics and battery while working on the vehicle.


See product

Battery knowledge

Supply batteries with grid plates
Wet (flooded) deep-cycle lead-acid batteries with grid plates are particularly suitable for small and medium-sized solar applications and wind turbines thanks to their good capacity absorption and maximum capacity reserves. Grid plate technology is robust …
Time for recovery
Before the winter or summer break, it is best to remove the battery or at least disconnect it and store it in a cool (ideally at 10 to 15 °C) and dry place. Charge every 4 to 6 weeks for 24 to 48 hours with a suitable charger. Check the state of charge …
Chargers for rescue and safety vehicles
Emergency and rescue vehicles and other safety-related types of vehicles often sit around for months, but when it comes down to it, they need to be ready at a moment's notice to put out fires, rescue injured people or clear roads. Chargers like the Fronius …
AGM and gel supply batteries
Deep-cycle batteries in AGM or gel design can be used in a variety of applications. They are suitable as supply batteries in the areas of marine, solar and camping, because the electrolyte is bound in gel or fleece (Absorbent Glass Mat), which makes the …
Check battery externally before charging
If the battery box is damaged or deformed, replace the battery. Clean dirty terminals with a wire brush. Remove oils, fluids or other deposits. For batteries with plugs, check fluid level and refill to MAX with distilled water if necessary.
What is a supply battery?
Supply batteries must provide power for as long as possible for consumers that are not connected to the regular power grid or the starter battery. Either in mobile applications, e.g. camping or in island installations such as mountain huts, or in safety …
What is a UPS battery?
These block batteries ensure the uninterruptible power supply (UPS) of POS systems or smaller computer systems as well as security systems such as locking systems or security lighting when the power grid fails. UPS systems also protect the connected loads …
Charging during long idle periods
If the vehicle is stationary for long periods and you make a lot of short journeys, it is advisable to charge the battery regularly with a charger, even if the battery has a low self-discharge rate or high cold-start performance. The exact intervals depend …
What is a solar battery?
Utility batteries, which can be used as temporary storage for photovoltaic (PV) or small wind systems, are highly cycle resistant, meaning they can withstand different charging cycles well. In the renewable energy sector, charging cannot be done with …
Checking the liquid level against sulphation
In a battery or accumulator, the chemical reaction between the active material of the grids and the acid generates current (electrons emitted) to supply the loads or stores current (electrons) provided by the charger or alternator. If the acid only partially …

What is a Supply Battery?

Supply batteries must provide power for as long as possible for consumers that are not connected to the regular power grid or the starter battery. Either in mobile applications, e.g. camping or in island installations such as mountain huts, or in safety applications when the normal power grid fails or to compensate for so-called mains wipers. Depending on the application, they are charged with a charger from the mains or via smaller photovoltaic or wind power systems.

So not only do they have to supply power for a long time and then take it up again well, but they also have to cope well with changing current levels and voltages.

Supply batteries are cyclic batteries, i.e. they are designed to continuously deliver current up to a maximum depth of discharge of 80% when supplying electrical consumers and then to be fully recharged again. In contrast, a starter battery delivers a short, strong current surge for starting the engine and is recharged by the alternator while driving.

Für welchen Einsatz ist die intAct Solar-Power AGM geeignet?

Symbol wind-power plantswind-power plants
As a power storage for small to medium-sized wind power plants or wind turbines.
Symbol E-boats (electric boat)E-boats (electric boat)
electric boats or electric ships.
Symbol Solar applicationsSolar applications
Small to medium-sized solar systems/solar applications e.g. in camping, stand-alone operation etc.
