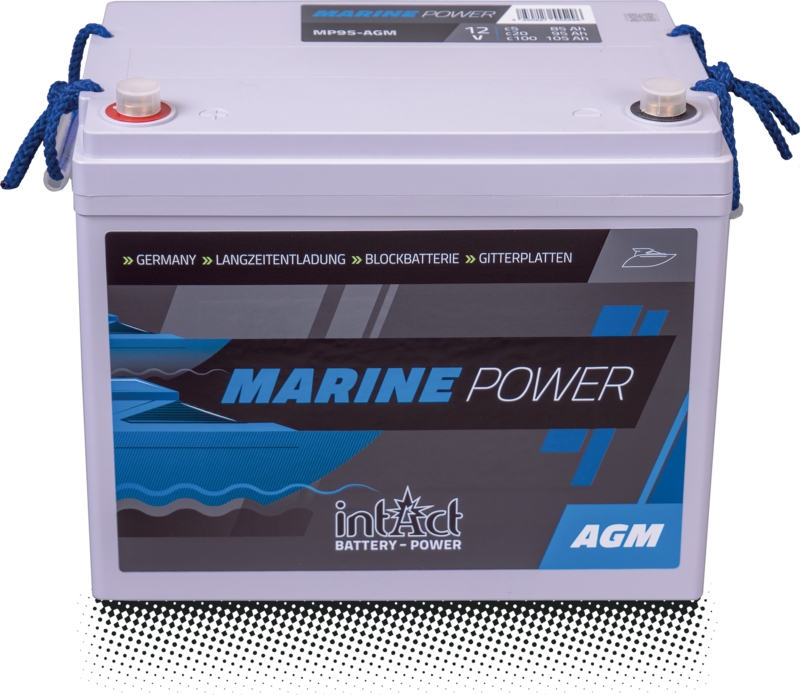

Abbildung intAct Marine-Power AGM
Symbol: Eignung für Marine
Symbol: Eignung für wind-power plants
Symbol: Eignung für E-boats (electric boat)
Symbol: Eignung für Solar applications
Symbol Recycling efficiency 95 %
Symbol Maximum tipping angle 90º
Sealed AGM battery with grid plates | electrolyte fixed in fleece | filled and charged | absolutely maintenance-free

intAct Marine-Power AGMRobust marine battery


AGM-based for high currents and deep charge cycles.
Our recommendation for endurance, absolutely maintenance-free marine applications.

Features

  • Power-stable dual-purpose battery.

    AGM technology ensures consistent power quality throughout the discharge process, even at high currents and low charge.
    Your benefit: Powerful storage and propulsion battery for running lights, refrigeration, GPS as well as light winches on boats at a reasonable price.

  • Very durable

    This battery has much thicker grid plates and reinforced fleece separators. Even at high loads, low temperatures and low charges the performance remains stable.
    Your advantage: Much more durable than a common grid plate battery.

  • Absolutely maintenance-free and leak-proof

    This battery can also be operated safely lying on water.
    Your advantage: You do not need to worry about water level control and refilling.

Characteristics

  • Very high life expectancy. 700 cycles according to IEC 254-1 for heavy cyclic use.
  • Absolutely maintenance-free. VRLA battery with gas recombination and safety valves, where refilling is not possible and not necessary.
  • Constant power quality throughout the discharge process even at high currents.
  • Longer life than wet lead-acid battery.
  • Shorter charging time than wet lead-acid battery.
  • Low self-discharge. Loses less than 3% charge per month.
  • Vibration resistant AGM battery with robust grids and strong fleece separators.
  • Reinforced grid plates with higher performance active material for deep cycle applications.
  • Temperature and corrosion resistant case.
  • Can also be installed horizontally.
  • Leak-proof.
Recycling efficiency 95 %
Maximum tipping angle 90º

All types

intAct Marine-Power AGM

Battery Volt Capacity CCA Length mm Width mm Height mm Pos. of terminal Terminal
MP200-06-AGMi6185 AH (c5), 200 AH (c20), 220 AH (c100)2621812810F-M8more

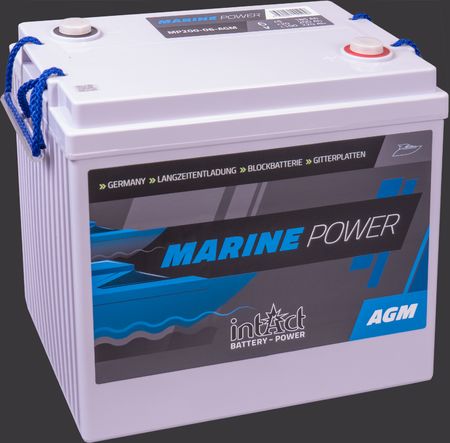

product image Supply Battery intAct Marine-Power AGM MP200-06-AGM

MP200-06-AGM

Japan-Code:{jpn}

MP200-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:185 AH (c5), 200 AH (c20), 220 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP260-06-AGMi6220 AH (c5), 260 AH (c20), 285 AH (c100)2621812810F-M8more

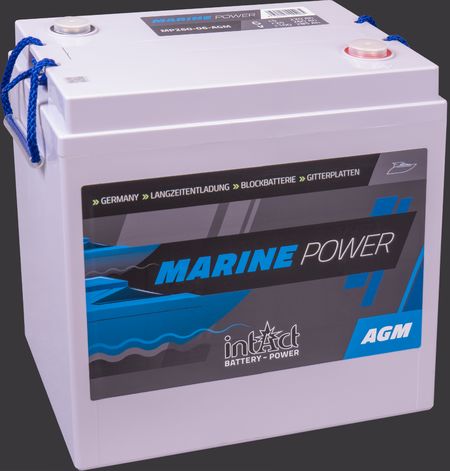

product image Supply Battery intAct Marine-Power AGM MP260-06-AGM

MP260-06-AGM

Japan-Code:{jpn}

MP260-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:220 AH (c5), 260 AH (c20), 285 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP315-06-AGMi6300 AH (c5), 315 AH (c20), 345 AH (c100)3121803590F-M8more

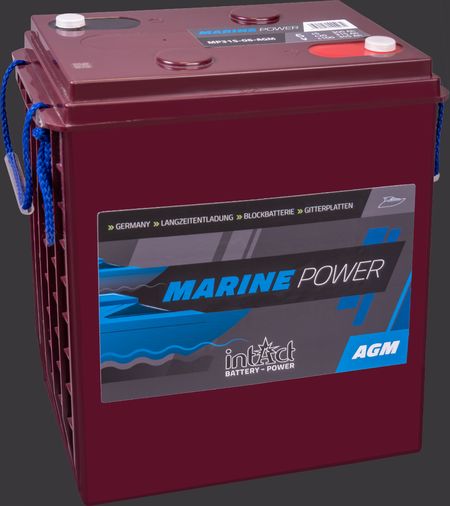

product image Supply Battery intAct Marine-Power AGM MP315-06-AGM

MP315-06-AGM

Japan-Code:{jpn}

MP315-06-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:6
Terminal:F-M8
Schema Endpol F-M8
Capacity:300 AH (c5), 315 AH (c20), 345 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:312 x 180 x 359 mm
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP185-08-AGMi8170 AH (c5), 185 AH (c20), 205 AH (c100)2621812810F-M8more

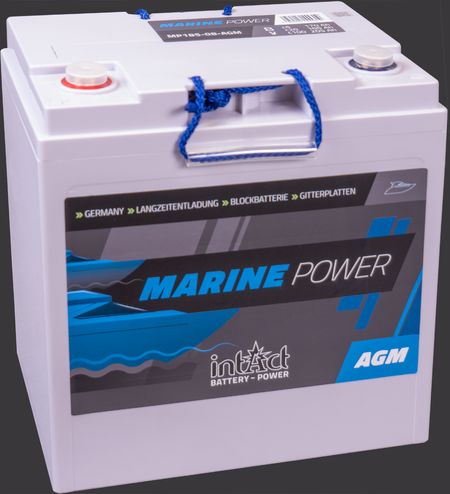

product image Supply Battery intAct Marine-Power AGM MP185-08-AGM

MP185-08-AGM

Japan-Code:{jpn}

MP185-08-AGM

Position of Terminal:0
Schema Schaltung 0
Volt:8
Terminal:F-M8
Schema Endpol F-M8
Capacity:170 AH (c5), 185 AH (c20), 205 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:262 x 181 x 281 mm
Schema Batteriekasten T02

Kasten: T02
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP80-AGMi1270 AH (c5), 80 AH (c20), 90 AH (c100)2601712101F-M8more

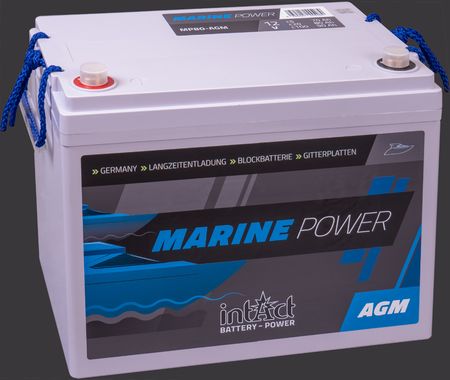

product image Supply Battery intAct Marine-Power AGM MP80-AGM

MP80-AGM

Japan-Code:{jpn}

MP80-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:70 AH (c5), 80 AH (c20), 90 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:260 x 171 x 210 mm
Schema Batteriekasten T09

Kasten: T09
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP95-AGMi1285 AH (c5), 95 AH (c20), 105 AH (c100)2601712101F-M8more

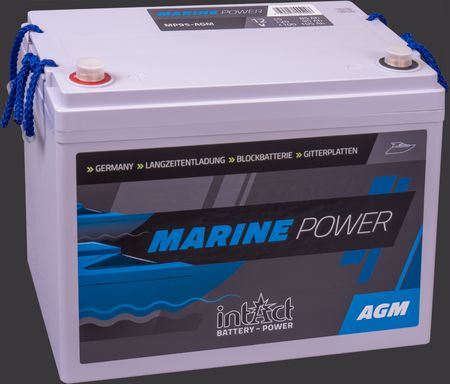

product image Supply Battery intAct Marine-Power AGM MP95-AGM

MP95-AGM

Japan-Code:{jpn}

MP95-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:85 AH (c5), 95 AH (c20), 105 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:260 x 171 x 210 mm
Schema Batteriekasten T09

Kasten: T09
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet
MP114-AGMi12110 AH (c5), 114 AH (c20), 125 AH (c100)3291712151F-M8more

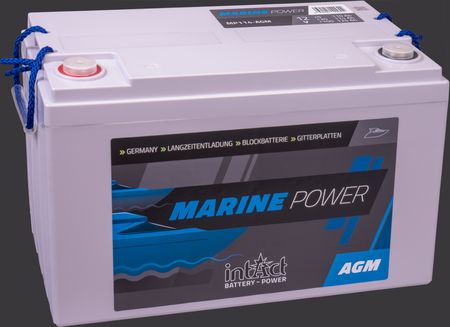

product image Supply Battery intAct Marine-Power AGM MP114-AGM

MP114-AGM

Japan-Code:{jpn}

MP114-AGM

Position of Terminal:1
Schema Schaltung 1
Volt:12
Terminal:F-M8
Schema Endpol F-M8
Capacity:110 AH (c5), 114 AH (c20), 125 AH (c100)
Base plate:none
Cold Cranking Ampere:
Size:329 x 171 x 215 mm
Schema Batteriekasten T14

Kasten: T14
Where can I buy this battery?

Dealer online shop

Buy online

Locally

Dealer locator
Download datasheet

Accessories
Charger

DEFA SmartCharge

Compact design for convenient charging of 12 volt batteries.


See product

DEFA workshop chargers


Powerful workshop charger.
Protects onboard electronics and battery while working on the vehicle.


See product

Battery knowledge

Checking the liquid level against sulphation
In a battery or accumulator, the chemical reaction between the active material of the grids and the acid generates current (electrons emitted) to supply the loads or stores current (electrons) provided by the charger or alternator. If the acid only partially …
Lithium supply batteries
The capacity and performance of lithium iron phosphate batteries are very high compared to other batteries of the same box size. They have an extremely long life expectancy, low self-discharge and can tolerate the highest charging currents. To fully charge …
Always choose a battery that suits your individual requirements
Each battery technology has particular strengths, but also weaknesses. Depending on the requirements your battery has to meet in the respective application, or which properties you want, some battery technologies are more suitable or less suitable. It is important to weigh up the properties.
When liquid is lost
Fluid evaporates in batteries during the chemical reaction to generate electricity, more so in a wet battery than in an AGM or GEL battery where the acid is fixed in non-woven or as GEL respectively. Unlike these sealed batteries, the vapor in the sealed …
Determine excessive self-discharge
If the battery charge drops significantly, possibly overnight, this may be due to leakage current. Silent, unwanted loads can be detected with an ammeter. Oils or liquids deposited on the surface of the battery can also cause considerable self-discharge. …
Seasonal use of drive or supply battery
Many vehicles, devices or machines are only used seasonally or on certain occasions. Ideally, your battery should be ready whenever you need it. That's why we recommend always storing batteries fully charged, at approx. 15 to 18° C and in a dry place, …
What is a solar battery?
Utility batteries, which can be used as temporary storage for photovoltaic (PV) or small wind systems, are highly cycle resistant, meaning they can withstand different charging cycles well. In the renewable energy sector, charging cannot be done with …
What does low maintenance mean?
Low-maintenance batteries can be recognised by the removable sealing plugs on the top, the vent hose and the white or transparent housing. In these batteries, the electrolyte is in liquid form, i.e. it is not bound as GEL or in fleece. They are not sealed …
Identifying and filling the liquid level
Markings on the outside of the white or transparent housing of a wet battery indicate the minimum (MIN) and maximum (MAX) fill levels. During commissioning or initial filling, the battery must be filled with battery acid up to the upper mark (MAX). During …
Supply batteries with grid plates
Wet (flooded) deep-cycle lead-acid batteries with grid plates are particularly suitable for small and medium-sized solar applications and wind turbines thanks to their good capacity absorption and maximum capacity reserves. Grid plate technology is robust …

What is a Supply Battery?

Supply batteries must provide power for as long as possible for consumers that are not connected to the regular power grid or the starter battery. Either in mobile applications, e.g. camping or in island installations such as mountain huts, or in safety applications when the normal power grid fails or to compensate for so-called mains wipers. Depending on the application, they are charged with a charger from the mains or via smaller photovoltaic or wind power systems.

So not only do they have to supply power for a long time and then take it up again well, but they also have to cope well with changing current levels and voltages.

Supply batteries are cyclic batteries, i.e. they are designed to continuously deliver current up to a maximum depth of discharge of 80% when supplying electrical consumers and then to be fully recharged again. In contrast, a starter battery delivers a short, strong current surge for starting the engine and is recharged by the alternator while driving.

Für welchen Einsatz ist die intAct Marine-Power AGM geeignet?

Symbol MarineMarine
Boats, ships, yachts
Symbol wind-power plantswind-power plants
As a power storage for small to medium-sized wind power plants or wind turbines.
Symbol E-boats (electric boat)E-boats (electric boat)
electric boats or electric ships.
Symbol Solar applicationsSolar applications
Small to medium-sized solar systems/solar applications e.g. in camping, stand-alone operation etc.
