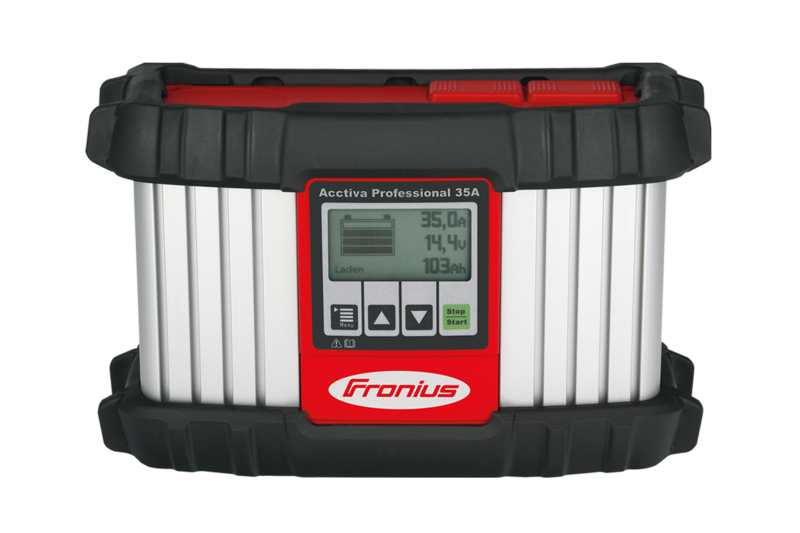

Abbildung Fronius Acctiva
Fronius Acctiva
Chargers for closed and sealed lead-acid batteries: Flooded, GEL, AGM

Fronius AcctivaUniversal professional charger

.
Charges starter batteries in professional applications with high efficiency. Supplies consumers and saves settings during updates and replacements. Suitable for all types of starter batteries.
Our recommendation for professional charging of starter batteries.

Features

  • Acctiva Twin

    With 2 charging circuits especially suitable for emergency vehicles with starter and traction battery

    • Protection against thermal overload
  • Acctiva Flash 70A, Acctiva Prof 35, Acctiva Smart 25

    Robust, fully automatic workshop chargers for power supply during diagnosis and software updates. Protect on-board electronics and back up vehicle settings during battery changes. Powerful fast charging. Ensure the battery is fully charged and ready to start. For cars, trucks, buses, motorcycles, security vehicles, construction vehicles and agricultural machinery. Acctiva Flash 70A for 12-volt batteries only, Acctiva Prof 35 and Acctiva Smart 25 for 6-volt, 12-volt and 24-volt batteries. With desulphation mode, function test for flat batteries and regeneration mode for deeply discharged batteries. With display to show charging phase, state of charge and faults. USB interface for firmware updates. Acctiva Flash 70A with IP25, Acctiva Prof 35 with IP40 horizontal/IP44 vertical, Acctiva Smart 25 with IP40.
  • Acctiva Seller

    Charger for showroom, car demonstration, vehicle premieres, vehicle handover. Charges the starter battery and safeguards the state of charge of batteries by preventing charge/discharge cycles, protecting the battery. Protects the vehicle, the onboard electronics and the battery. Compact design and silent with no fan. With detachable cables to pass through the engine compartment and mount the charger out of sight. Secure against removal and theft with Kensington Lock. IP40 horizontal, IP44 vertical.

Characteristics

  • Fully automatic charger with advanced high-frequency technology.
  • Suitable for flooded starter batteries including calcium, hybrid, silver batteries also with 14.7 volt charge voltage, for sealed AGM, GEL, MF and SLA batteries as well as for start-stop batteries, both Enhanced Flooded Batteries (EFB) and AGM batteries.
  • Protection against: Reverse polarity, short circuit, overheating.
  • State of charge shown on the display.

Details

Item nr. Volt Ampere Length mm Width mm Height mm
ACCTIVA-TWIN12/2x12/241524716288more
Fronius Acctiva ACCTIVA-TWIN

ACCTIVA-TWIN

Power
Connection voltage:230 V
Connection current:15 A
DC voltage:12/2x12/24 V
DC current:15 A
Size:247 x 162 x 88 mm
Weight:2 kg
Where can I
buy this?
ACCTIVA-PROFESS-356/12/240-3524716288more
Fronius Acctiva ACCTIVA-PROFESS-35

ACCTIVA-PROFESS-35

Power
Connection voltage:230 V
Connection current:0 A - 35 A
DC voltage:6/12/24 V
DC current:0-35 A
Size:247 x 162 x 88 mm
Weight:2 kg
Where can I
buy this?
ACCTIVA-SMART-256/12/240-2524716288more

ACCTIVA-SMART-25

Power
Connection voltage:230 V
Connection current:3 - 250 Ah, 2 - 25 A
DC voltage:6/12/24 V
DC current:0-25 A
Size:247 x 162 x 88 mm
Weight:2 kg
Where can I
buy this?
ACCTIVA-SELLER123024716288more

ACCTIVA-SELLER

Power
Connection voltage:230 V
Connection current:30 A
DC voltage:12 V
DC current:30 A
Size:247 x 162 x 88 mm
Weight:2 kg
Where can I
buy this?

Charger Knowledge

DISCHARGE VOLTAGE
DISCHARGE DIAGRAM
INTELLIGENT CHARGER
RECHARGING
Continuous discharge test
CONSTANT SHOP
CHARGE STATUS
Chargers for supply batteries
In order to supply the connected consumers permanently, supply batteries usually have a larger capacity than starter batteries, which are intended to deliver a lot of power, especially in the short term. Chargers designed for starter batteries reach their …
Safety instructions for handling acid
Battery acid consists partly of sulphuric acid, which is highly corrosive. It attacks your skin, textiles and even metal. Put on protective clothing! So always wear gloves, safety glasses and possibly an acid-proof apron when handling batteries. Choose …
Chargers for rescue and safety vehicles
Emergency and rescue vehicles and other safety-related types of vehicles often sit around for months, but when it comes down to it, they need to be ready at a moment's notice to put out fires, rescue injured people or clear roads. Chargers like the Fronius …
Batteries without vent hose
Only conventional, wet batteries need a vent hose, because they gas strongly during operation. The resulting steam can escape through the openings in the plugs. To prevent the vapour from damaging the vehicle, conventional batteries are vented to the …
Chargers in a workshop
Especially for workshops, there is another charger that supplies the vehicle with power during diagnoses and software updates on the vehicle electronics. During this phase, the vehicle management system requires a particularly large amount of power and …
AGM or GEL drive batteries
Drive batteries in AGM or GEL technology are sealed, absolutely maintenance-free, leak-proof batteries in a closed design with a fixed electrolyte (in fleece or gel). Both are suitable for medium to heavy cyclic use, for example in cleaning machines, …
Charging correctly step by step
Tip: For full performance: Charge before first installation! 1. preparation Check that your charger matches the battery. Does the charger support the correct charging voltage? Does the charging current provided match the battery? What charging curve …
When is a multi-voltage charger worthwhile?
Electronic chargers can support different voltages. Depending on whether you only want to charge a car starter battery or also a scooter, motorhome supply battery or drive battery for small vehicles or industrial trucks, it may be worth reaching for a …
What does that even mean? Charging curve?
Current and voltage during charging can be measured and displayed as a curve over the course of the charging time. Depending on which processes, controls by switch-off (a) or switch-over points (0) are possible with a charger, one speaks of the provided charging characteristics.
Transformer charger versus high-frequency charger
Transformer chargers with a downstream rectifier are relatively inexpensive, but they are large, heavy and less efficient than high-frequency chargers. They allow 1- to 3-step charging methods based on the W-characteristic (W, Wa, WaPuls, W0Wa, WU, WUWa …
